Vehicle Access Via Wireless RF and Encoded CHIPS |
| |
Wireless RF Chip Based Access Control System for your FACTORY Company Parking Lot.
We hereby Present Two Models, the first One being a Wireless RF Based System and below the Other a Encoded CHIP (RFID) System. |
| |

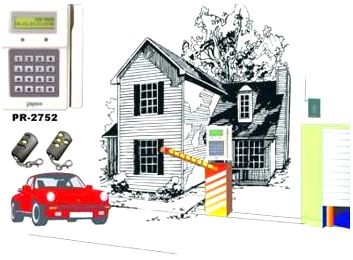

| Rf Remote Type Vehicle Access Control System |
 |
| |
| Detailed Product Description |
| Features: |
- for car parking or door access control system with reading rf remote transmitter
- with two rf receiver ports and anti-pass back function.
- supports stand-alone operation or PC online communication through rs-232c/rs-422.
- 9999 card holder/6000 events.
- operation modes: Card only, free access.
- card can be added/deleted in single/block mode by manual operation or via PC.
- with built-in quartz realtime clock for time zone control and time recording.
- supports printout for all events logging by connecting the serial output to pegasus pg-1050b printer adapter.
- system parameters and personal maps editing with keypad by master card or through six digits master pin, also can be uploaded/downloaded via on-line PC.
- with serial printer adapter for optional realtime or batched transaction logging.
- with tamper switch and loop sensor input to trigger alarm when case is tampered or loop is intruded.
- with CPU watch-dog function to prevent malfunction and built-in low power rtc design, data retention for 10 years while power failure.
- metal case and keypad as well as case key lock to prevent vandalism.
|
| |
| Specifications: |
- card: Rf transmitter.
- code: Hopping code or pegasus code.
- operating frequency:433.9mhz.
- communications: Rs-232c, rs-422, rs-485 jumper selectable.
- display:16 x 2 lines LCD and LED backlight.
- keypad:4 x 3 membrane for system programming.
- indicators: Leds (one bicolor and one yellow) and buzzer for sound indication.
- power supply:12v DC,300ma.
- dimensions (l x w x h):156 x 123 x 42mm.
- weight:1370g.
|
| |

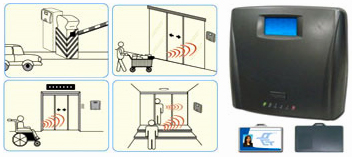

| Long Range Encoded CHIPS (Rfid) Reader For 3 Or 6 Meters Parking Access |
| |
 |
| Long Range CHIP (Rfid) Reader For 3 Or 6 Meters Parking Access |
| |
| Detailed Product Description |
- hi-technology, low cost and integrate antenna into reader for easy installation.
- epoxy potted for environmental protection.
- abs material, weather resistant and water proof.
- output format: Rs-485, rs-232, wiegand, aba track 2.
- active CHIP tag model no. (reading range): PFH-620(6 meters). PFH-320(3 meters).
- tag type: Hand free card in compact size, built in 3v lithium battery for long life use (about 3 years).
- operation frequency:433.9 MHz & 125khz.
- operation temperature: -20~60 degrees centigrade.
- ower requirements: Dc15v,300 ma
- dimension:270 (l) x 270 (w) x 39 (h) mm
- weight:2kg
|
| |
